Fastener object thread styles

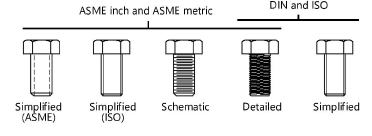

There are several thread types common to multiple fastener tools. The available thread types vary by the drawing standard being used.
